door

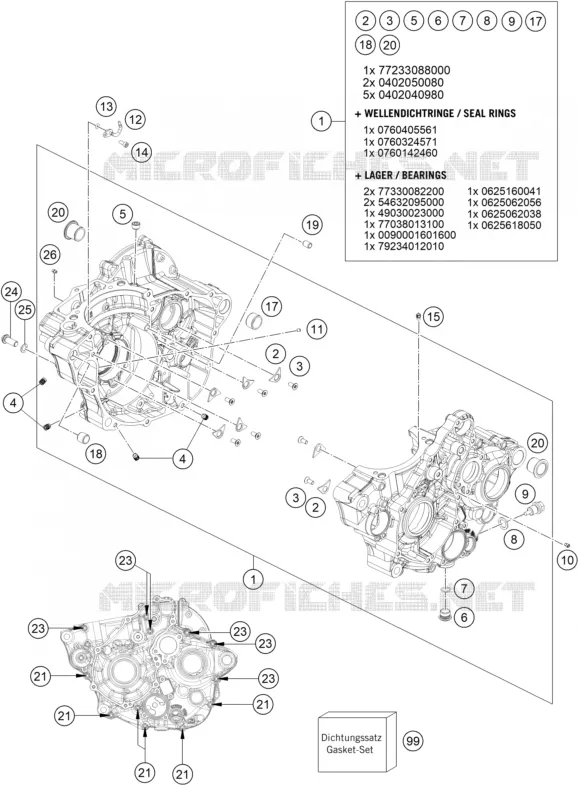

CARTERDELEN
24
3
3
3
21
21
21
21
21
23
23
23
23
23
25
13
7
7
5
5
14
18
18
17
17
9
9
8
8
19
4
4
15
2
2
2
6
6
20
20
20
11
26
10
12
1
1
99
1
engine case cpl.
A46030000044
1 434,66€ Stukprijs incl. btw
2
Retaining bracket crankshaft b
75030085100
3,66€ Stukprijs incl. btw
3
INT. TORX FLAT HEAD M5X12 T25
0019050121S
2,22€ Stukprijs incl. btw
4
SCREW PLUG
59030296000
4,92€ Stukprijs incl. btw
5
pipe plug DIN 906 M10x1
0906100100
3,42€ Stukprijs incl. btw
6
HOLDING BOLT M14X1,5
78036081000
5,40€ Stukprijs incl. btw
7
O-RING 1,5x11 SILICON
0770110015
2,88€ Stukprijs incl. btw
8
CU-SEAL RING DIN7603-12X18X1,5
58038022000
2,04€ Stukprijs incl. btw
9
oildrain plug with magnet
58030021100
10,74€ Stukprijs incl. btw
10
OIL JET ''60'' M4
80030058060
11,10€ Stukprijs incl. btw
11
Nozzle
79330058040
6,66€ Stukprijs incl. btw
12
OIL JET ANGLED 50
81230164050
9,00€ Stukprijs incl. btw
13
O-RING 3,5X2,00 NBR
0770035020
1,38€ Stukprijs incl. btw
14
Cylinder screw DIN 912-M4x10-8
0912040103S
1,38€ Stukprijs incl. btw
15
oil jet 50 M5
60030063050
9,24€ Stukprijs incl. btw
17
Dowel, 21x12
54830027100
6,00€ Stukprijs incl. btw
18
DOWEL BUSHING 13,8X11X12
54630027000
6,66€ Stukprijs incl. btw
19
Dowel, 6x8x11.5
59030023100
2,64€ Stukprijs incl. btw
20
Housing bush
79230010000
11,10€ Stukprijs incl. btw
21
HH collar screw M6x55 TX30
0025060556
2,22€ Stukprijs incl. btw
23
HH COLLAR SCREW M6X70 TX30
0025060706
2,22€ Stukprijs incl. btw
24
Screw, M8x20 SW=8 8.8
0000150802000
3,24€ Stukprijs incl. btw
25
COPPER GASK.DIN7603- 8,2X13X1
0603082131
1,44€ Stukprijs incl. btw
26
Oil jet "40" M4
80030058040
11,10€ Stukprijs incl. btw
99
Engine seal kit 250cc
A46030099000
197,28€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
