door

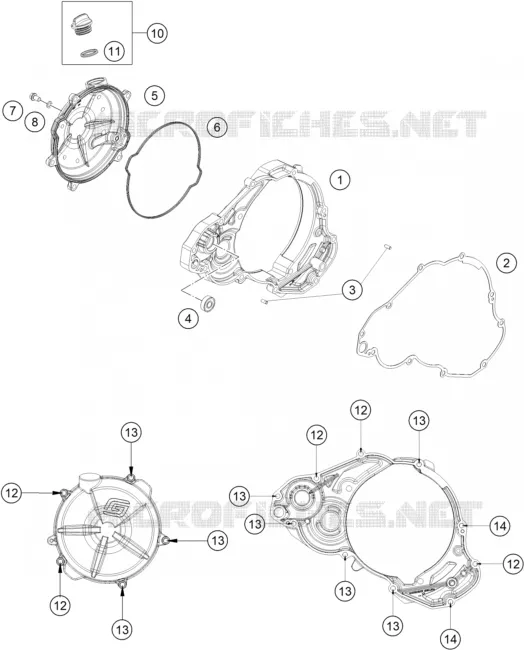

KOPPELINGS DEKSEL
1
2
3
4
5
6
10
11
12
12
12
12
12
13
13
13
13
13
13
13
13
14
14
7
8
1
Clutch cover, inner, cmpl.
A44030001044
224,94€ Stukprijs incl. btw
2
Clutch cover gasket, inner
A44030025000
19,92€ Stukprijs incl. btw
3
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
1,56€ Stukprijs incl. btw
4
GROOVED BALL BEAR. 608 2RS C3
0625006087
6,90€ Stukprijs incl. btw
5
clutch cover outside
A49030126000
100,98€ Stukprijs incl. btw
6
Clutch cover gasket external
A48030027000
12,72€ Stukprijs incl. btw
7
HH collar screw M6x10 TX30
0025060106
1,98€ Stukprijs incl. btw
8
CU-SEAL RING DIN7603-6X10X1
0603061001
1,44€ Stukprijs incl. btw
10
OIL FILLER CAP M24x3 WITH O-R
79430020033
10,74€ Stukprijs incl. btw
11
O-RING 19,00X3,00 NBR
0770191015
1,38€ Stukprijs incl. btw
12
HH collar screw M6x60 TX30
0025060606
2,22€ Stukprijs incl. btw
13
HH collar screw M6x25 TX30
0025060256
1,98€ Stukprijs incl. btw
14
HH collar screw M6x40 TX30
0025060406
1,98€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.

Lijst van machines die dit schema gebruiken
