door

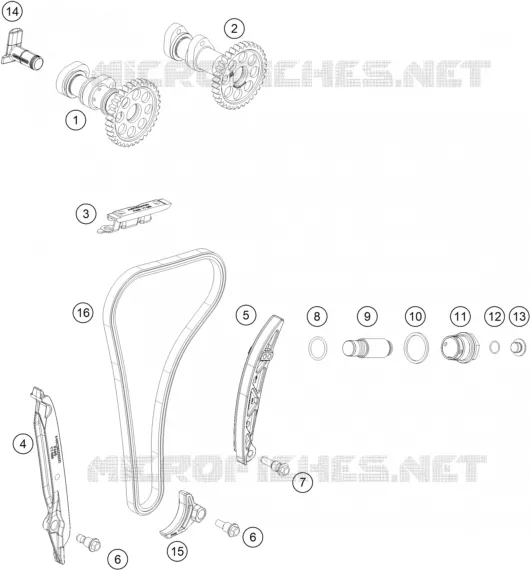

DISTRIBUTIERIEM
1
2
3
4
5
6
6
7
8
9
10
11
12
13
15
16
1
Intake camshaft
A46036509000
255,30€ Stukprijs incl. btw
2
Exhaust camshaft
A46036510000
255,30€ Stukprijs incl. btw
3
Slide bars
A46036004000
19,68€ Stukprijs incl. btw
4
Slide bars
A46036001000
12,54€ Stukprijs incl. btw
5
Slide rail
A46036002000
16,08€ Stukprijs incl. btw
6
BUSHING SCREW M6
77236001160
5,82€ Stukprijs incl. btw
7
BUSHING SCREW M8
77236002160
5,82€ Stukprijs incl. btw
8
o-ring 18.00x2.00 NBR70
0770180020
1,38€ Stukprijs incl. btw
9
Chain tension adjuster, hydrau
77036003200
97,98€ Stukprijs incl. btw
10
CU SEAL-RING DIN7603 A24X29X2
0603242920
1,74€ Stukprijs incl. btw
11
HOLDING BOLT M24X1,5
77336008000
19,14€ Stukprijs incl. btw
12
o-ring 10.00x1.00 NBR70
0770010010
1,38€ Stukprijs incl. btw
13
threaded plug
77236080100
4,98€ Stukprijs incl. btw
15
SECURING PROTECTION
77236005000
8,46€ Stukprijs incl. btw
16
Timing chain
A47036013000
90,00€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
