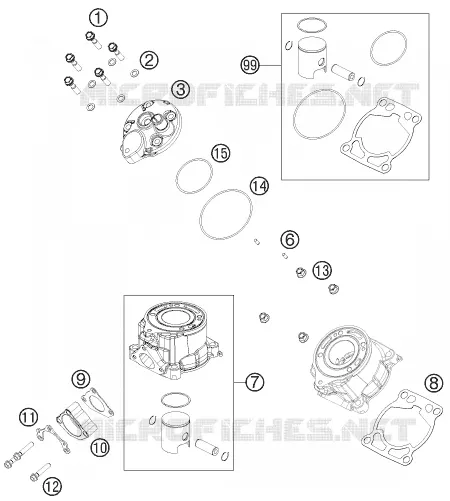

CILINDER / CILINDERKOP
1
2
3
6
7
8
8
8
8
9
10
11
12
13
14
15
99
99
1
CYLINDER HEAD SCREW
50430079000
3,42€ Stukprijs incl. btw
2
CU-SEAL RING DIN7603- 7,3X12X1
0603070121
1,44€ Stukprijs incl. btw
3
CYLINDER HEAD
45230006000
124,74€ Stukprijs incl. btw
6
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
1,56€ Stukprijs incl. btw
7
CYLINDER + PISTON
45230038000
399,84€ Stukprijs incl. btw
8
CYLINDER BASE GASKET 0,6MM
46230035060
7,68€ Stukprijs incl. btw
8
CYLINDER BASE GASKET 0,2 MM
46230035020
7,68€ Stukprijs incl. btw
8
CYLINDER BASE GASKET 0,5 MM
46230035050
7,68€ Stukprijs incl. btw
8
CYLINDER BASE GASKET 0,4 MM
46230035040
7,68€ Stukprijs incl. btw
9
EXHAUST FLANGE GASKET
45205004000
7,26€ Stukprijs incl. btw
10
EXHAUST FLANGE
45205003000
22,08€ Stukprijs incl. btw
11
BRACKET FOR SPRINGHOLDER
46205003050
10,86€ Stukprijs incl. btw
12
HH collar screw M6x30 TX30
0025060306
1,98€ Stukprijs incl. btw
13
flanged nut M8 WS10
46030045000
3,42€ Stukprijs incl. btw
14
O-RING 78,00X2,00 VIT. BLACK
0770078020
3,42€ Stukprijs incl. btw
15
O-RING 52,00X2,0 VITON 75
0770052020
3,42€ Stukprijs incl. btw
99
PISTON KIT GR.II 50 SX/TC
00050000209
87,60€ Stukprijs incl. btw
99
PISTON KIT GR.I 50 SX/TC
00050000208
87,60€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
