door

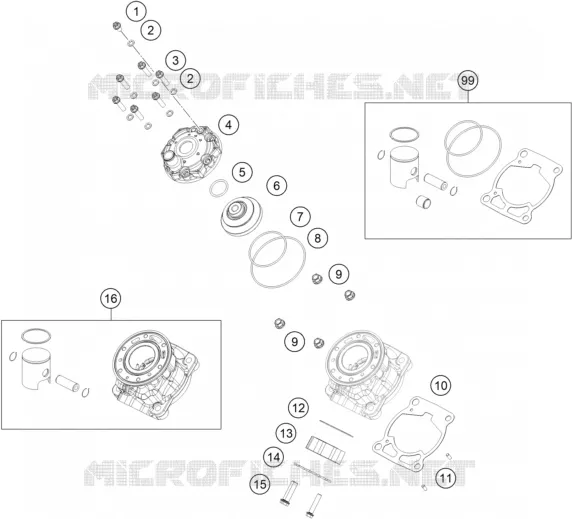

CILINDER / CILINDERKOP
1
2
2
3
4
5
6
7
8
9
9
10
10
10
10
10
11
12
13
14
15
16
99
99
1
HH collar screw M6x10 TX30
0025060106
1,98€ Stukprijs incl. btw
2
CU-SEAL RING DIN7603-6X10X1
0603061001
1,44€ Stukprijs incl. btw
3
HH collar screw M6x25 TX30
0025060256
1,98€ Stukprijs incl. btw
4
Cylinder head
47230006100
124,74€ Stukprijs incl. btw
5
O-ring 23x2,5 Viton 75SH
0770023025
2,88€ Stukprijs incl. btw
6
Combustion chamber insert
A40030060000
42,06€ Stukprijs incl. btw
7
O-RING 54X2 VITON
0770540020
3,42€ Stukprijs incl. btw
8
O-RING 80,00X2,00 VITON
0770800021
3,42€ Stukprijs incl. btw
9
flanged nut M8 WS10
46030045000
3,42€ Stukprijs incl. btw
10
Cylinder base gasket
A40530035040
7,68€ Stukprijs incl. btw
10
Cylinder base gasket
A40530035020
7,68€ Stukprijs incl. btw
10
Cylinder base gasket
A40530035060
7,68€ Stukprijs incl. btw
10
Cylinder base gasket
A40530035050
7,68€ Stukprijs incl. btw
10
Cylinder base gasket
A40530035025
7,68€ Stukprijs incl. btw
11
NEEDLE ROL.DIN5402 NRB 4X9,8
0402040980
1,56€ Stukprijs incl. btw
12
EXHAUST FLANGE GASKET
45205004000
7,26€ Stukprijs incl. btw
13
Exhaust flange
45305003000
26,28€ Stukprijs incl. btw
14
BRACKET FOR SPRINGHOLDER
46205003050
10,86€ Stukprijs incl. btw
15
HH collar screw M6x30 TX30
0025060306S
2,22€ Stukprijs incl. btw
16
Cylinder + piston
A40030038000
399,84€ Stukprijs incl. btw
99
piston kit I 50 SX/TC/MC
A40030007010 I
104,76€ Stukprijs incl. btw
99
piston kit II 50 SX/TC/MC
A40030007010 II
104,76€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.

Lijst van machines die dit schema gebruiken
