door

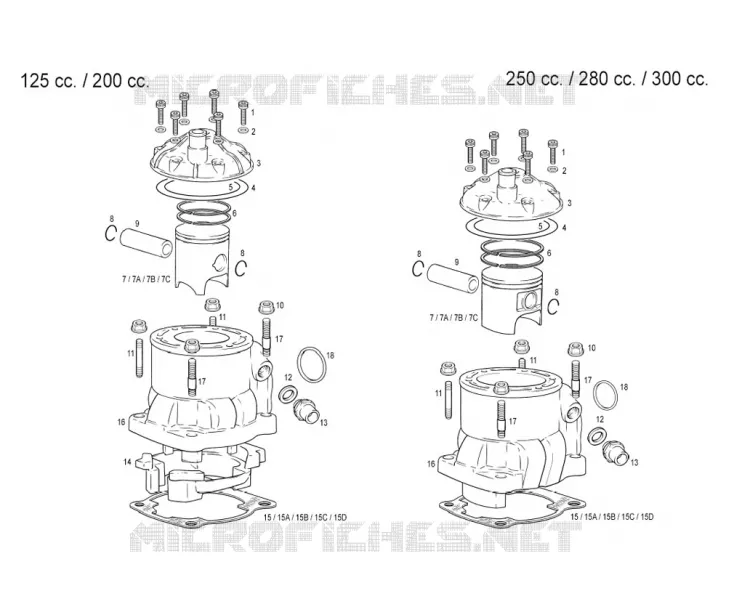

CILINDER
1
Cylinder head screw 6x25 DIN 9
T0306025
2,22€ Stukprijs incl. btw
2
RONDELLE CUIVRE 6X10X1.5*
T4006008
1,92€ Stukprijs incl. btw
3
CULASSE 280CC 2007
MT280716000
Niet beschikbaar
4
O-ring 101,32x1,78
M01619135
2,70€ Stukprijs incl. btw
5
JOINT TORIQUE INT 79x1.78 *
M01619215
1,98€ Stukprijs incl. btw
6
PISTON RING
MT280516040
60,78€ Stukprijs incl. btw
7A
PISTON B
MT280516121
Niet beschikbaar
7B
PISTON C
MT280516122
Niet beschikbaar
7C
PISTON D
MT280516123
Niet beschikbaar
8
CLIP AXE DE PISTON TT 250
ME25616126
12,12€ Stukprijs incl. btw
9
AXE PISTON TXT 250/300
MT280216125
19,74€ Stukprijs incl. btw
10
Nut 10x1,5 8.8
M01613001
1,80€ Stukprijs incl. btw
11
Stud
MT280216023
6,00€ Stukprijs incl. btw
12
JOINT RACCORD
M01612026
1,44€ Stukprijs incl. btw
13
Water connection pro
MT280210013
8,34€ Stukprijs incl. btw
14
CALE CYLINDRE
MT120216087
26,40€ Stukprijs incl. btw
15
0,8 mm. GASKET CYLINDER BASE
MT28024400
Niet beschikbaar
15A
JOINT EMBASE 0.8 MM TXT
MT208224009
Niet beschikbaar
15B
Gasket 1,0mm
MT280244010
9,36€ Stukprijs incl. btw
15C
JOINT EMBASE 0.5 MM TXT *
MT120244000
9,84€ Stukprijs incl. btw
15D
Cylinder base gasket pro 15
MT280244015
9,36€ Stukprijs incl. btw
16
JOINT EMBASE 0.15 MM TXT
MT280716022
Niet beschikbaar
17
Stud
MT280216056
6,00€ Stukprijs incl. btw
18
Gasket exhaust
MT280244012
8,76€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.

Lijst van machines die dit schema gebruiken
