door

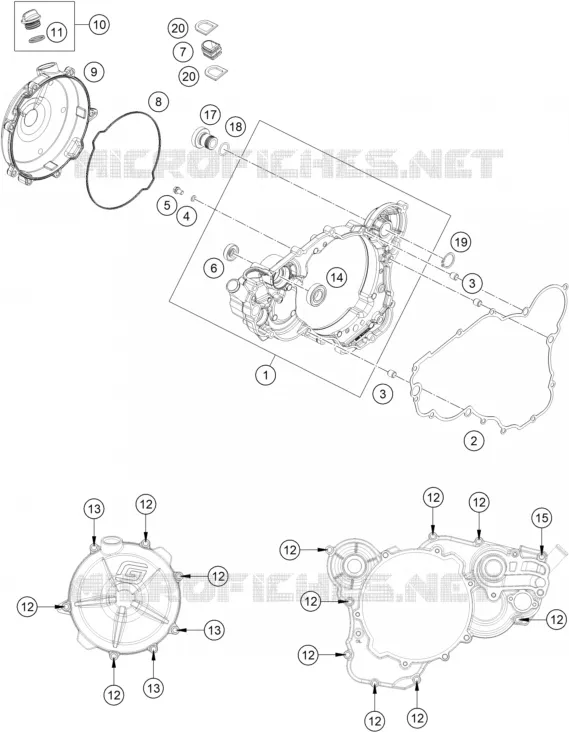

KOPPELINGS DEKSEL
1
2
3
3
4
5
6
7
8
9
10
11
12
12
12
12
12
12
12
12
12
12
12
12
13
13
13
14
15
17
18
19
20
20
1
Inner clutch cover cmpl.
55530101044
267,78€ Stukprijs incl. btw
2
CLUTCH COVER GASKET INSIDE
55430025100
19,92€ Stukprijs incl. btw
3
DOWEL 9,8 X7X10
49030090100
2,16€ Stukprijs incl. btw
4
CU-SEAL RING DIN7603-6X10X1
0603061001
1,44€ Stukprijs incl. btw
5
HH collar screw M6x10 TX30
0025060106
1,98€ Stukprijs incl. btw
6
SHAFT SEAL RING 8X24X7 A DUO
0760082472
4,74€ Stukprijs incl. btw
7
SEALING CARRIER 07
54837091100
7,86€ Stukprijs incl. btw
8
CLUTCH COVER GASKET OUTSIDE
55430027000
12,72€ Stukprijs incl. btw
9
Outer clutch cover
A54030426000
100,98€ Stukprijs incl. btw
10
OIL FILLER CAP M24x3 WITH O-R
79430020033
10,74€ Stukprijs incl. btw
11
O-RING 19,00X3,00 NBR
0770191015
1,38€ Stukprijs incl. btw
12
HH collar screw M6x20 TX30
0025060206
1,98€ Stukprijs incl. btw
13
HH collar screw M6x60 TX30
0025060606
2,22€ Stukprijs incl. btw
14
BALL BEARING 16002 C3
0625160020
11,52€ Stukprijs incl. btw
15
HH collar screw M6x40 TX30
0025060406
1,98€ Stukprijs incl. btw
17
KICK STARTER PLUG
83033056100
11,34€ Stukprijs incl. btw
18
O-RING 14,00X2,00
0770140200
1,38€ Stukprijs incl. btw
19
CIRCLIP DIN0471-19X1,2
0471190120
1,32€ Stukprijs incl. btw
20
SEALING ELEMENT BOTTOM
54637107000
6,90€ Stukprijs incl. btw
De schema's zijn uitsluitend ter informatie. Bij twijfel staan onze specialisten klaar om uw vragen te beantwoorden. Let er bij het toevoegen van een onderdeel aan uw winkelwagen op dat u de gewenste hoeveelheid selecteert. De vermelde stukprijs geldt voor één exemplaar van elk onderdeelnummer.
